AirLoc 700 Series – universal use for excellent damping

Schwingungsisolationsplatten der Serie 700

AirLoc vibration pads of the 700 series are the result of 50 years of development and application experience in vibration isolation engineering. Thanks to the high level of damping, the reduction of vibration levels is extremely effective, even when used in critical application conditions. Very good resistance to oils, lubricants and fuels makes the 700 series isolation pads ideal for modern, cost-effective production machines and machine tools. Click on article to show available standard pad sizes.

Click on article to show available standard pad sizes.

 NameArt. no.Pad thickness
[mm]		ProfileIdeal load
[psi]		Natural frequency
at ideal load
[Hz] vertical		Natural frequency
at ideal load
[Hz] horizontal
Article illustrationAirLoc 7053.07050.705without145.0104.024.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally applied, long-term stability.
Type705
NameAirLoc 705
Art. no.3.07050.70
Coloryellow green
Technical Data
Profilewithout
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]104.0
Horizontal natural frequency at ideal load f0h [Hz]24.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]15.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.8
Coefficient of friction tolerance +/-0.1
Weight [kg]3.4
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]5
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07050.701000500
3.07050.71500500
3.07050.72500250
3.07050.76250250
3.07050.80200200
3.07050.85125125
3.07050.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7063.07051.705single145.079.019.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally applied, long-term stability.
Type706
NameAirLoc 706
Art. no.3.07051.70
Coloryellow green
Technical Data
Profilesingle
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]79.0
Horizontal natural frequency at ideal load f0h [Hz]19.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]19.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]2.8
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]5
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07051.701000500
3.07051.71500500
3.07051.72500250
3.07051.76250250
3.07051.80200200
3.07051.85125125
3.07051.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7073.07052.705double145.063.016.5
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally applied, long-term stability.
Type707
NameAirLoc 707
Art. no.3.07052.70
Coloryellow green
Technical Data
Profiledouble
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]63.0
Horizontal natural frequency at ideal load f0h [Hz]16.5
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]27.5
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]2.2
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]5
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07052.701000500
3.07052.71500500
3.07052.72500250
3.07052.76250250
3.07052.80200200
3.07052.85125125
3.07052.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7103.07100.7010without145.082.016.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Economical isolation pad with high damping. Low structure height. Suitable for production systems, general machine engineering.
Type710
NameAirLoc 710
Art. no.3.07100.70
Coloryellow green
Technical Data
Profilewithout
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]82.0
Horizontal natural frequency at ideal load f0h [Hz]16.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]21.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.8
Coefficient of friction tolerance +/-0.1
Weight [kg]7.0
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]10
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07100.701000500
3.07100.71500500
3.07100.72500250
3.07100.76250250
3.07100.80200200
3.07100.85125125
3.07100.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7113.07101.7010single145.064.014.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Economical isolation pad with high damping. Low structure height. Suitable for production systems, general machine engineering.
Type711
NameAirLoc 711
Art. no.3.07101.70
Coloryellow green
Technical Data
Profilesingle
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]64.0
Horizontal natural frequency at ideal load f0h [Hz]14.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]19.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]6.4
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]10
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100

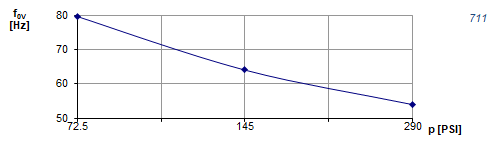

Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%

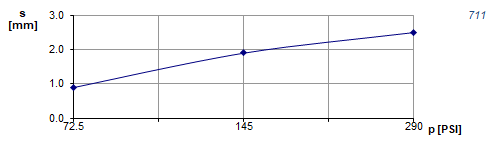

Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07101.701000500
3.07101.71500500
3.07101.72500250
3.07101.76250250
3.07101.80200200
3.07101.85125125
3.07101.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7123.07102.7010double145.051.011.5
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Economical isolation pad with high damping. Low structure height. Suitable for production systems, general machine engineering.
Type712
NameAirLoc 712
Art. no.3.07102.70
Coloryellow green
Technical Data
Profiledouble
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]51.0
Horizontal natural frequency at ideal load f0h [Hz]11.5
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]33.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]6.0
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]10
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100

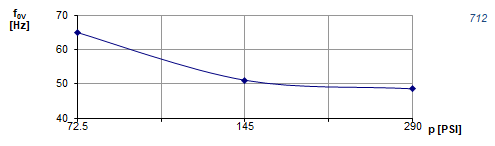

Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%

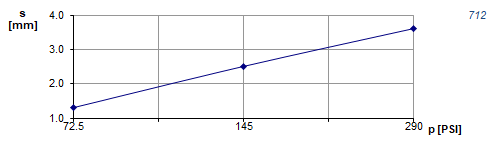

Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07102.701000500
3.07102.71500500
3.07102.72500250
3.07102.76250250
3.07102.80200200
3.07102.85125125
3.07102.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7153.07150.7015without145.059.512.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally usable isolation pad with high damping effect. Many years of proven performance in all printing presses, paper and textile machines.
Type715
NameAirLoc 715
Art. no.3.07150.70
Coloryellow green
Technical Data
Profilewithout
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]59.5
Horizontal natural frequency at ideal load f0h [Hz]12.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]30.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.8
Coefficient of friction tolerance +/-0.1
Weight [kg]10.6
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]15
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07150.701000500
3.07150.71500500
3.07150.72500250
3.07150.76250250
3.07150.80200200
3.07150.85125125
3.07150.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7163.07151.7015single145.049.011.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally usable isolation pad with high damping effect. Many years of proven performance in all printing presses, paper and textile machines.
Type716
NameAirLoc 716
Art. no.3.07151.70
Coloryellow green
Technical Data
Profilesingle
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]49.0
Horizontal natural frequency at ideal load f0h [Hz]11.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]23.5
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]10.0
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]15
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100

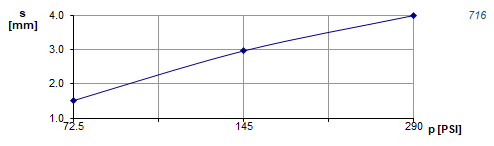

Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07151.701000500
3.07151.71500500
3.07151.72500250
3.07151.76250250
3.07151.80200200
3.07151.85125125
3.07151.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7173.07152.7015double145.040.010.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Universally usable isolation pad with high damping effect. Many years of proven performance in all printing presses, paper and textile machines.
Type717
NameAirLoc 717
Art. no.3.07152.70
Coloryellow green
Technical Data
Profiledouble
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]40.0
Horizontal natural frequency at ideal load f0h [Hz]10.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]39.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]9.0
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]15
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%

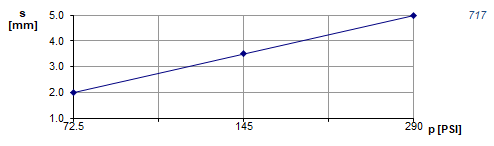

Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07152.701000500
3.07152.71500500
3.07152.72500250
3.07152.76250250
3.07152.80200200
3.07152.85125125
3.07152.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7253.07250.7025without145.040.59.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Highly effective isolation pad especially developed for machines with high dynamic force, such as presses, sheering machines and stamping machines.
Type725
NameAirLoc 725
Art. no.3.07250.70
Coloryellow green
Technical Data
Profilewithout
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]40.5
Horizontal natural frequency at ideal load f0h [Hz]9.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]35.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.8
Coefficient of friction tolerance +/-0.1
Weight [kg]17.2
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]25
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07250.701000500
3.07250.71500500
3.07250.72500250
3.07250.76250250
3.07250.80200200
3.07250.85125125
3.07250.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7263.07251.7025single145.035.58.5
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Highly effective isolation pad especially developed for machines with high dynamic force, such as presses, sheering machines and stamping machines.
Type726
NameAirLoc 726
Art. no.3.07251.70
Coloryellow green
Technical Data
Profilesingle
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]35.5
Horizontal natural frequency at ideal load f0h [Hz]8.5
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]27.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]17.0
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]25
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100

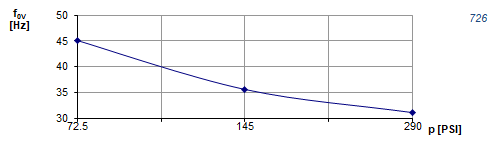

Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%

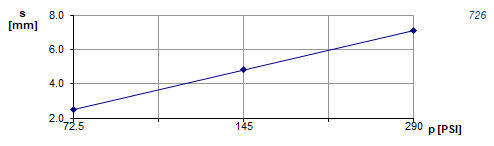

Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07251.701000500
3.07251.71500500
3.07251.72500250
3.07251.76250250
3.07251.80200200
3.07251.85125125
3.07251.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration
Article illustrationAirLoc 7273.07252.7025double145.031.08.0
CONTACT
CALL-BACK
QUOTATION
Datasheet
Article information
Highly effective isolation pad especially developed for machines with high dynamic force, such as presses, sheering machines and stamping machines.
Type727
NameAirLoc 727
Art. no.3.07252.70
Coloryellow green
Technical Data
Profiledouble
Hardness [° Shore A]70 - 75
Load p from [psi]72.5
Load p to [psi]290.0
Ideal load p [psi]145.0
Vertical natural frequency at ideal load f0v [Hz]31.0
Horizontal natural frequency at ideal load f0h [Hz]8.0
Tolerance natural frequency +/- [Hz]10%
Vertical damping ratio D at ideal load [%]35.0
Tolerance +/-10%
Coefficient of friction on concrete with fine mortar0.85
Coefficient of friction tolerance +/-0.1
Weight [kg]16.4
Dimensions
Length L [mm]1000
Width B [mm]500
Pad thickness unloaded [mm]25
Pad thickness tolerance webDIN 7715/T5/P3
Range of application
Temperature range from [°C]-15
Temperature range to [°C]100
Diagram vertical natural frequency
Tolerance natural frequency vertical f0v [Hz] +/-10%
Diagram deflection
Tolerance Deflection s +/-10%
Standard pad dimensions
Article no.Length [mm]Width [mm]
3.07252.701000500
3.07252.71500500
3.07252.72500250
3.07252.76250250
3.07252.80200200
3.07252.85125125
3.07252.86100100
Other dimensions in all shapes available from stock upon request.

Article illustration

Article illustration

Our application engineers will be glad to recommend you the optimum solution. Please contact us!


Products

Vibration engineering

Machine foundation

    Contact


    © 2024 AirLoc Ltd., all rights reserved.

    Contact  |  Imprint  |  Privacy Policy  |  Sitemap

    © 2024 AirLoc Ltd.Telephone: +41 44 929 77 00
    Industriestrasse 2, CH-8618 Oetwil am See    		www.airloc.com
    contact(at)airloc.com    		Technical changes without prior notice
    Print date: 04.12.2024
